Basic Information on the E12 M535i.

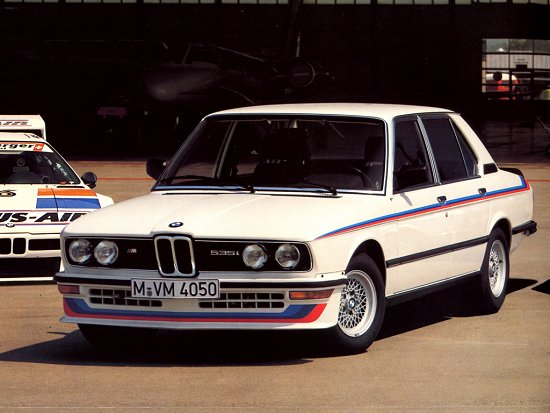

E12 M535i

Engine:

  • 6 Cylinder, 3453cc (210.7 cu in)
  • Bore & Stroke: 93.4mm (3.677in), 84mm (3.307in)
  • Valve Gear: SOHC, 2 valves per cylinder, Bosch L-Jetronic fuel injection (NOT Motronic)
  • Compression Ratio: 9.3:1
  • Max Power: 218 bhp (PS-DIN) (160 kW ISO) @ 5,200 rpm
  • Max Torque: 228 lb ft (308 Nm) @ 4,000 rpm

    • Transmission:
  • Close Ratio 5 speed manual
  • Ratios (1st through 5th): 3.72, 2.40, 1.77, 1.26, 1.00
  • Final Drive Ratio: 3.07 LSD

    • Suspension & Steering
  • Front: Inclined coil spring struts (MacPherson Struts, coil springs)
  • Rear: Trailing arms with auxiliary springs
  • Bilstein gas-filled telescoping dampers (specially valved)
  • Front and rear anti-roll bars
  • Steering: Recirculating ball, hydraulic power assist

    • Brakes:
  • All Disc, vented front, solid rear

    • Weight & Dimensions:
  • Wheelbase: 2636 mm / 103.8 in
  • Length: 4620 mm / 181.9 in
  • Front track: 1420 mm / 55.9 in
  • Rear track: 1460 mm / 57.4 in
  • Width: 1690 mm / 66.5 in
  • Height: 1425 mm / 56.1 in

    • Wheels & Tires:
  • Mahle-BBS Aluminum Alloy 14 x 6.5 Front and Rear
  • Size: 195/70 VR 14

    • Acceleration:
  • 0-60 MPH: 7.2 sec
  • Max Speed: 219 Kph / 130 Mph
